Analog Devices ADXL1001 - Low Noise, High Frequency +/-100g MEMS Accelerometer

Product Overview

The ADXL1001 deliver ultralow noise density over an extended frequency range with two full-scale range options and are optimized for industrial condition monitoring. The ADXL1001 (±100 g) have typical noise densities of 30 μg/√Hz and 25 μg/√Hz, respectively. Both accelerometer devices have stable and repeatable sensitivity, which is immune to external shocks up to 10,000 g.

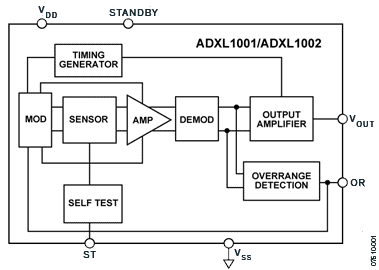

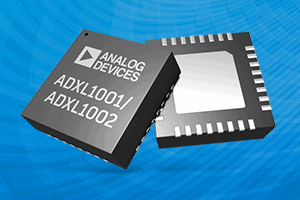

The ADXL1001 have an integrated full electrostatic self test (ST) function and an overrange (OR) indicator that allow advanced system level features and are useful for embedded applications. With low power and single-supply operation of 3.3 V to 5.25 V, the ADXL1001 also enable wireless sensing product design. The ADXL1001 are available in a 5 mm × 5 mm × 1.80 mm LFCSP package and are rated for operation over a −40°C to +125°C temperature range.

Applications

  • Condition monitoring
  • Predictive maintenance
  • Asset health
  • Test and measurement
  • Health usage monitoring systems (HUMSs)

Evaluation Kit: EVAL-ADXL1001Z

The EVAL-ADXL1001Z is a simple evaluation board that allow users to quickly evaluate the performance of the ADXL1001 vibration sensor.

Kit features include:

  • 2 sets of spaced vias for populating 6-pin headers
  • Easily attaches to prototyping board or PCB
  • Small size and board stiffness minimizes impact on the user system and acceleration measurements
Price: 67 €
[]
1 Step 1

Informationen zum Datenschutz finden Sie hier.

keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right

Order Samples

ModelPackagePinsTemp Range (°C)RoHS
ADXL1001BCPZ32-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
ADXL1001BCPZ-RL32-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
ADXL1001BCPZ-RL732-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
[]
