Analog Devices ADXL1005

Analog Devices ADXL1005 - Low Noise, Wide Bandwidth, MEMS Accelerometer

Product Overview

The ADXL1005 delivers ultralow noise density over an extended frequency range and is optimized for bearing fault detection and diagnostics. The ADXL1005 has typical noise density of 75 μg/√Hz across the linear frequency range. Microelectronicmechanical systems (MEMS) accelerometers have stable and repeatable sensitivity, and are immune to external shocks up to 10,000 g.

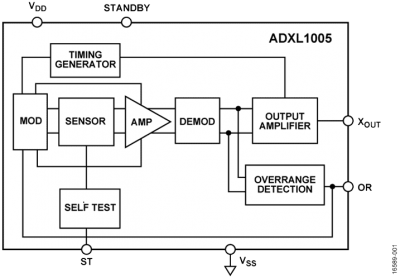

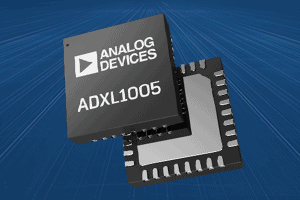

The integrated signal conditioning electronics enable such features as full electrostatic self test (ST) and an overrange (OR) indicator, useful for embedded applications. With low power and single-supply operation of 3.3 V to 5.25 V, the ADXL1005 also enables wireless sensing product design. The ADXL1005 is available in a 5 mm × 5 mm × 1.80 mm LFCSP package and operates over the −40°C to +125°C temperature range.

Applications

  • Condition monitoring
  • Predictive maintenance
  • Asset health
  • Test and measurement
  • Health usage monitoring systems (HUMSs)
  • Acoustic emissions

Evaluation Kit: EVAL-ADXL1005Z

The EVAL-ADXL1005Z are simple evaluation boards that allow users to quickly evaluate the performance of the ADXL1005 vibration sensors.

Kit features include:

  • 2 sets of spaced vias for populating 6-pin headers
  • Easily attaches to prototyping board or PCB
  • Small size and board stiffness minimizes impact on the user system and acceleration measurements

Order Samples

ModelPackagePinsTemp Range (°C)RoHS
ADXL1005BCPZ32-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
ADXL1005BCPZ-RL32-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
ADXL1005BCPZ-RL732-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
[]
