Analog Devices ADXL1003

Analog Devices ADXL1003 - Low Noise, Wide Bandwidth, MEMS Accelerometer

Product Overview

The ADXL1003 delivers ultralow noise density over an extended frequency range and is optimized for bearing fault detection and diagnostics. The ADXL1003 has typical noise density of 45 μg/√Hz across the linear frequency range. Microelectronicmechanical systems (MEMS) accelerometers have stable and repeatable sensitivity, and are immune to external shocks up to 10,000 g.

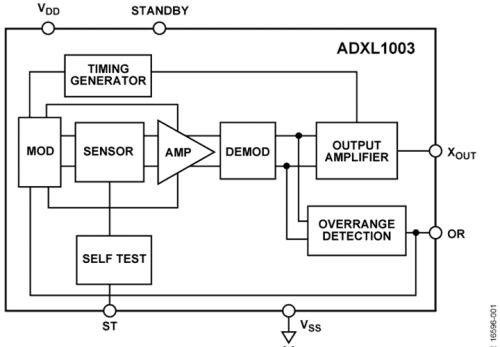

The integrated signal conditioning electronics enable such features as full electrostatic self test (ST) and an overrange (OR) indicator, useful for embedded applications. With low power and single-supply operation of 3.0 V to 5.25 V, the ADXL1003 also enables wireless sensing product design. The ADXL1003 is available in a 5 mm × 5 mm × 1.8 mm LFCSP package and operates over the −40°C to +125°C temperature range.

Applications

  • Condition monitoring
  • Predictive maintenance
  • Asset health
  • Test and measurement
  • Health usage monitoring systems (HUMSs)
  • Acoustic emissions

Evaluation Kit: EVAL-ADXL1003Z

The EVAL-ADXL100xZ is a simple evaluation board that allows users to quickly evaluate the performance of the ADXL1003 vibration sensor.

Order Samples

ModelPackagePinsTemp Range (°C)RoHS
ADXL1003BCPZ32-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
ADXL1003BCPZ-RL32-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
ADXL1003BCPZ-RL732-Lead LFCSP (5mm x 5mm x 1.8mm w/ EP)32-40 to +125E
[]
